Italy IMD 3.5KW \ 110KV \ 40KHZ |
Italy IMD 5KW \ 120KV \ 40KHZ | |
|

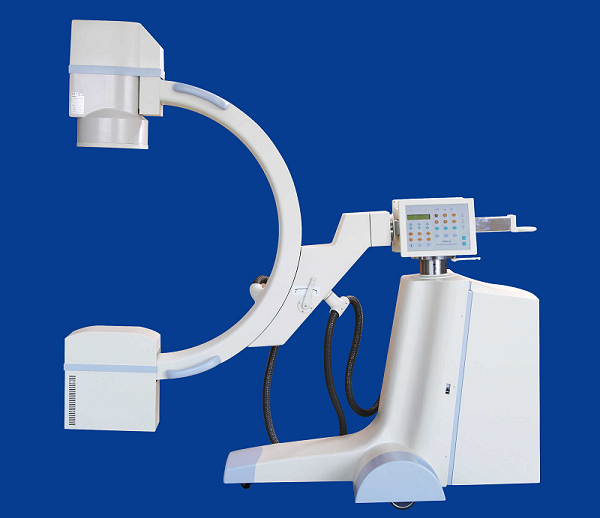

C-arm |
X-ray tube focus-distance between image intensifiers |
100CM | |
|
C-arm rotation |
±180°（Electromotion / Optional） | ||
|
C-arm bracket rotation |
115°（Electromotion / Optional） | ||
|
Vertical movement |
400mm（Electromotion） | ||
|
Backward-forward movement |
200mm（Electromotion） | ||
|
Rotation around vertical axis |
±12.5° | ||
|
X-ray generator |
Fluoroscopy mode |
40-110KV （Step length-1KV） 0.1-5mA |
40-120KV （Step length-1KV） 0.1-5mA |
|
Pulse- fluoroscopy mode |
40-110KV 0.1-10mA |
40-120KV 0.1-10mA | |
|
Radiography mode |
40-110KV （Step length-1KV） 23-71mA |
40-120KV （Step length-1KV） 23-71mA | |
|
Digital Exposure mode |
40-110KV （Step length-1KV） 20mA |
40-120KV （Step length-1KV） 20mA | |
|
X-ray tube unit |
|
Stationary anode 0.6×0.6mm 1.5×1.5mm |
Rotating anode 0.3×0.3mm 0.6×0.6mm |
|
Anode heat capacity |
|
30KJ（40KHU） |
150KJ（200KHU） |
|
Heat capacity of assembled head |
|
500KJ（667KHU） |
600KJ（800KHU） |
|
Collimator |
|
Changeable，auto-track，double leaves | |
|
Image intensifier |
Standard incidence entrance |
| |
|
TV system |
CCD radiography |
Interlace-scanning CCD radiography system | |
|
Monitor |
|
14’’ Progressive-scanning monitor | |
|
Power supply |
Single-phase AC power supply |
220V \ 50HZ \ 20A | |
|
Capacity |
|
4KVA | |
|
Image storage |
|
8-image strong，8-frame noise reduction，last image freezing | |
|
Monitor（Option） |
|
17’’ Progressive-scanning monitor 1024×768 | |
