Parameter

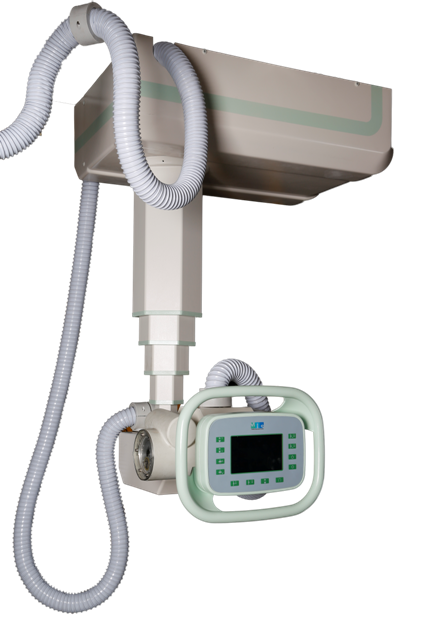

① Ceiling
Up and down stroke：1450mm±20mm（Motorise）
Transversal stroke：>1800mm（Motorise）
Lengthways stroke：>1800mm（Motorise）
Rotation about vertical axis
Tube Rotation： 360°（Manual）
Rotation about horizontal axis
Tube Rotation：±90°（Motorise）

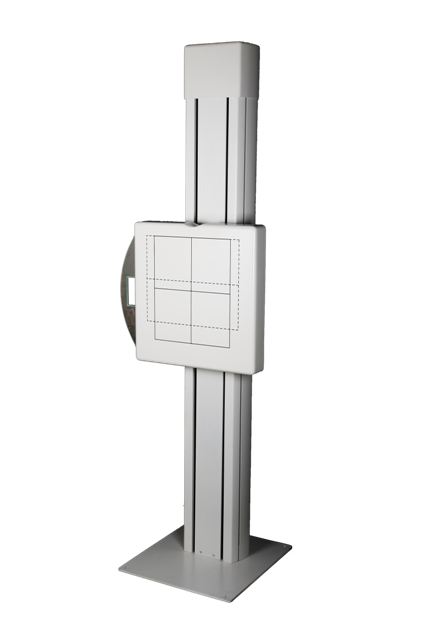

② Vertical Stand
Bucky up and down stroke：±1150±30mm
Minimum distance from the center of the Bucky to ground：460±20mm

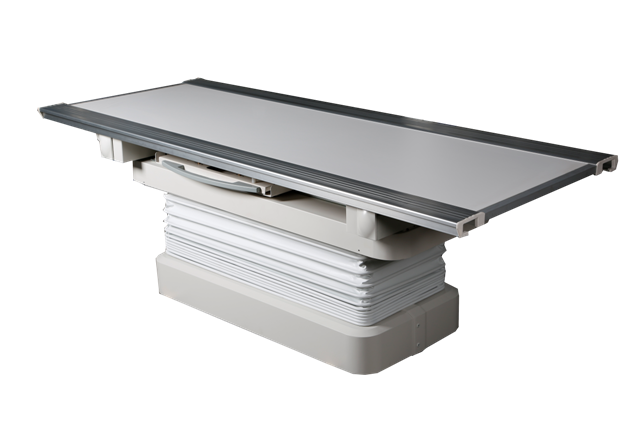

③ Table
Dimensions of Tabletop：（Length X Width）2000mmX828mm
Tabletop Lock Style：Foot switch
Tabletop Move Style：Manual
Up and down：368mm±20mm
The lowest height of tabletop to ground：565mm
Lengthwise stroke：500mm±20mm（Manual）
Broadwise stroke：125mm±10mm（Manual）
Function
Ceiling Suspended System (with two Bucky) has two functions of auto tracking and resetting.
★Auto tracking

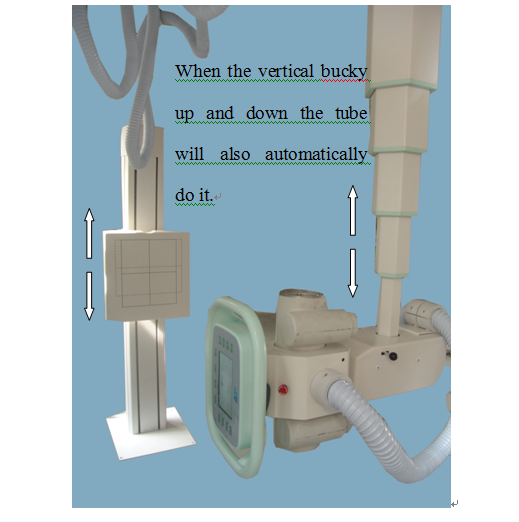

Press the up and down key of tube or Bucky the anther machine will automatically move when the tube and Bucky are upright. The error of tube center to Bucky center is ±2mm at upright direction. The auto tracking is also between ceiling and table. When the ceiling up and down the tabletop also do this. When the Bucky under the table move left and right the ceiling will also do this.
★Resetting
You can preset three positions into the machine. And press the three resetting key the system will move to the positions you preset.
Usually we set 1m position, 1.8m position and under table position.
